SPECIFICATIONS

Brand Name: WGWK

High Definition Support: 4K

Hign-concerned Chemical: None

Image Stabilization: No image stabilization

Model Number: WGWK-CHA-MINIA

NightShot Function: No

Origin: Mainland China

Parameters: 3/4/5/8MP

Pixels: 5 million

Sensor Size: 1/2.8 inches

Sensor Size (inches): 1/2.8 inches

Type: Professional

Use: Home

Weight: 301g-400g

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.

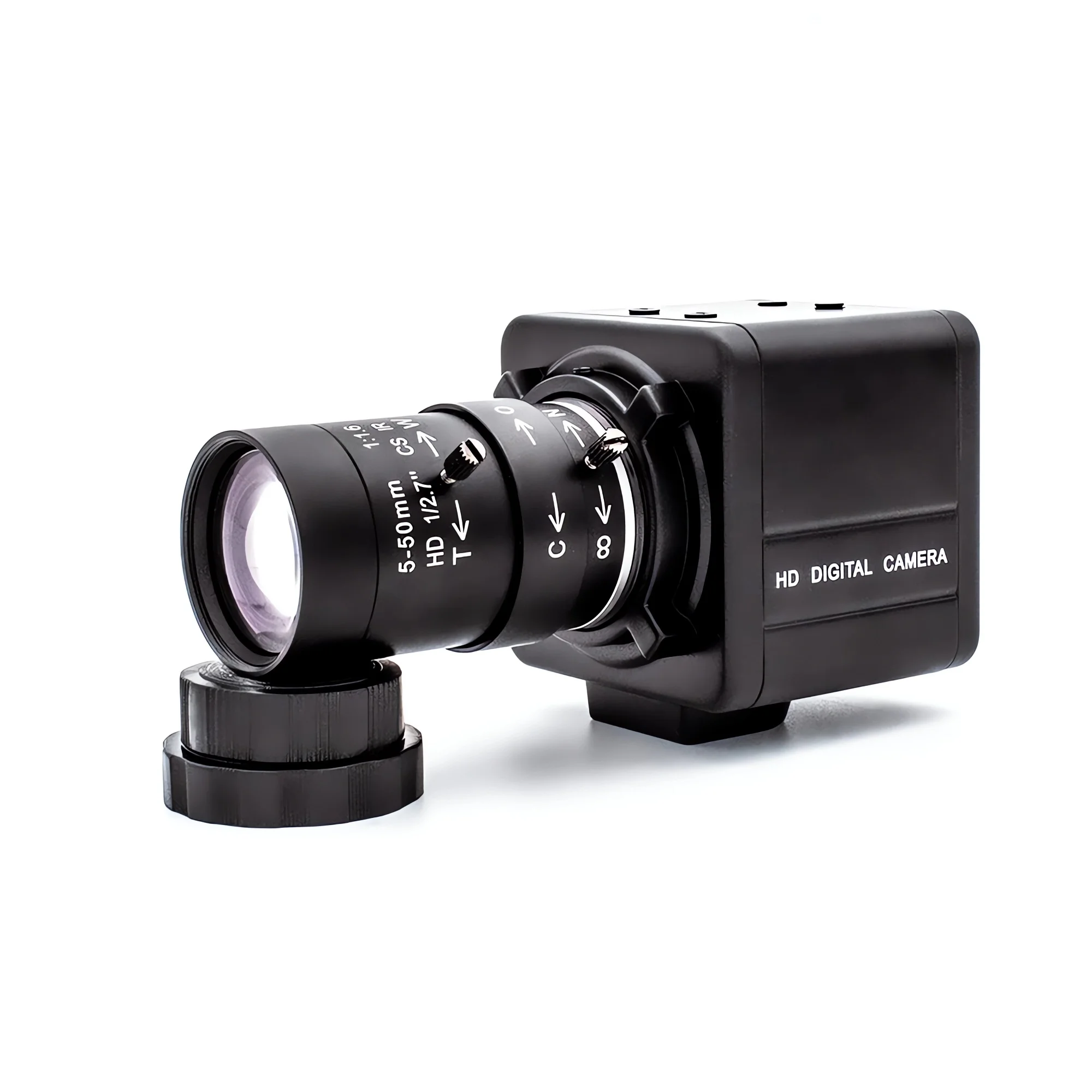

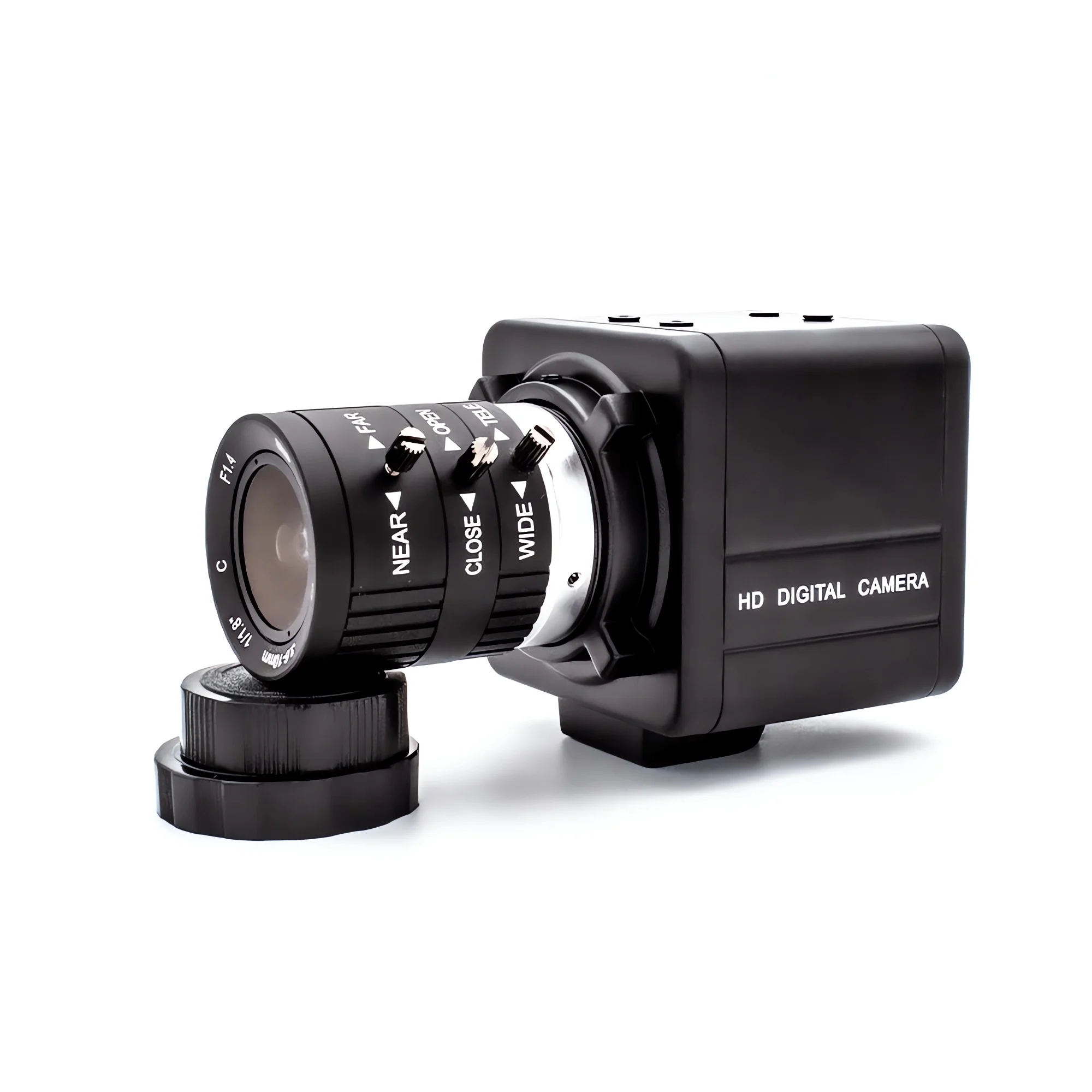

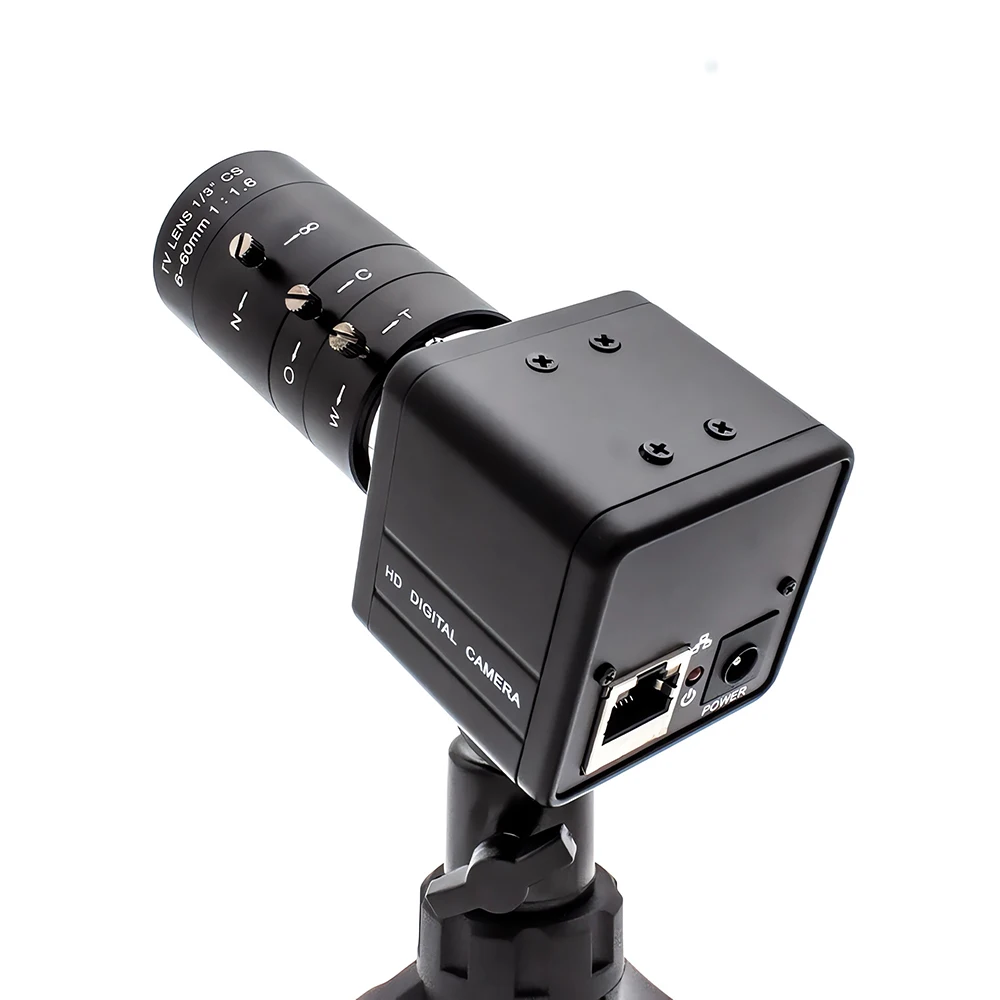

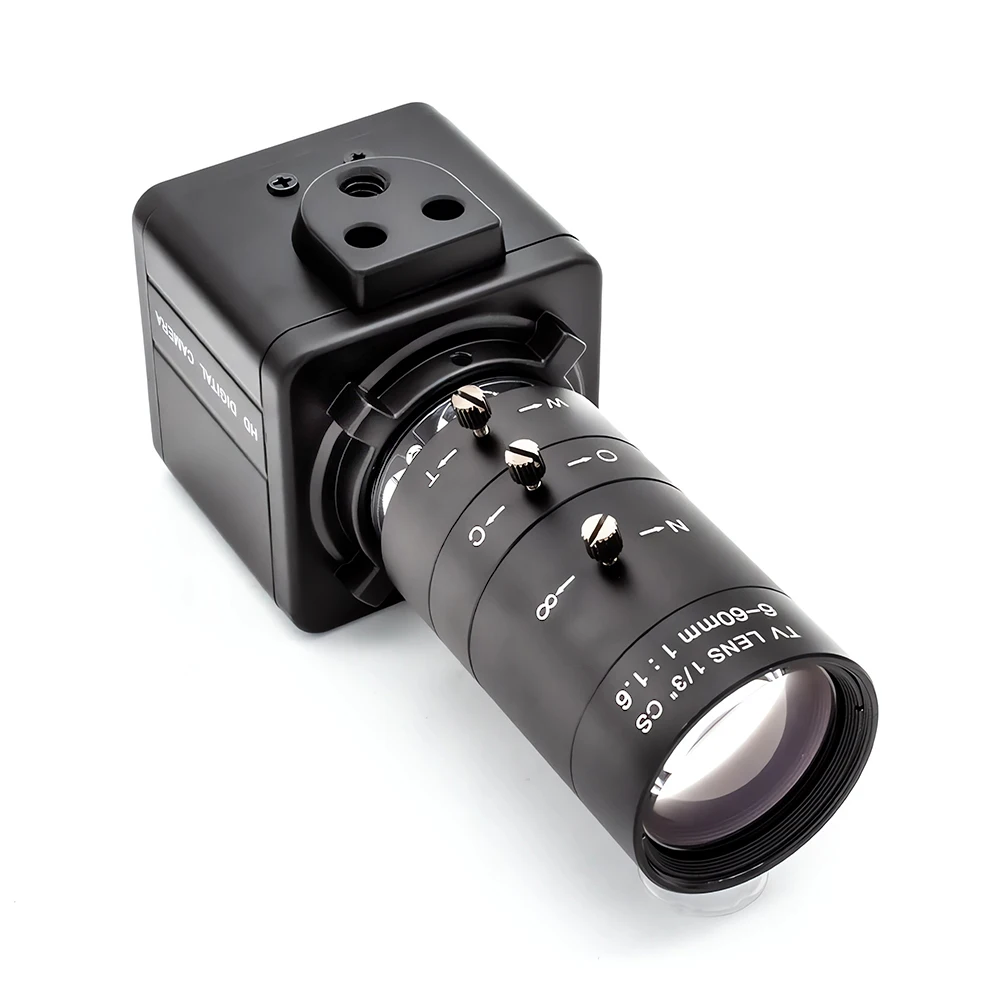

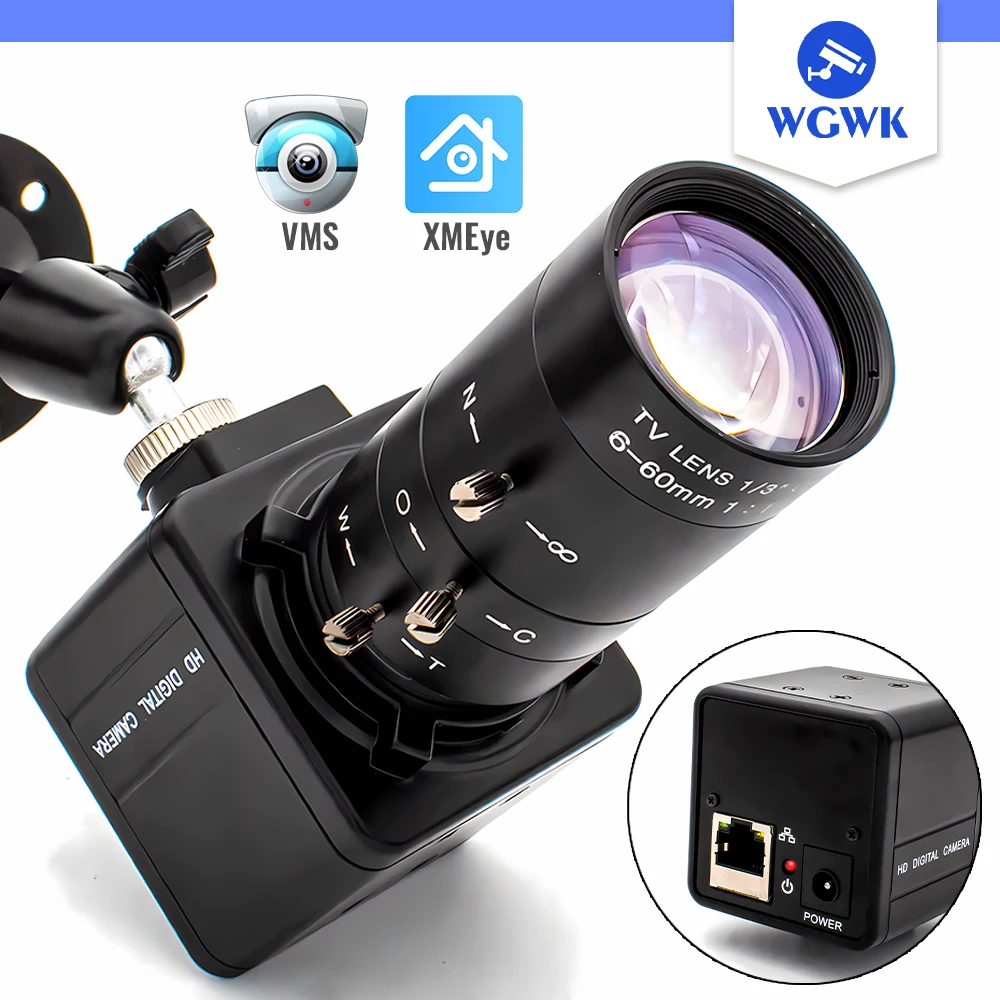

WGWK MINI IP Camera 3/4/5/8MP Manual Zoom Varifocal CS Lens Metal Box Industrial Inspection Security Webcam Video Surveillance

NOTE:

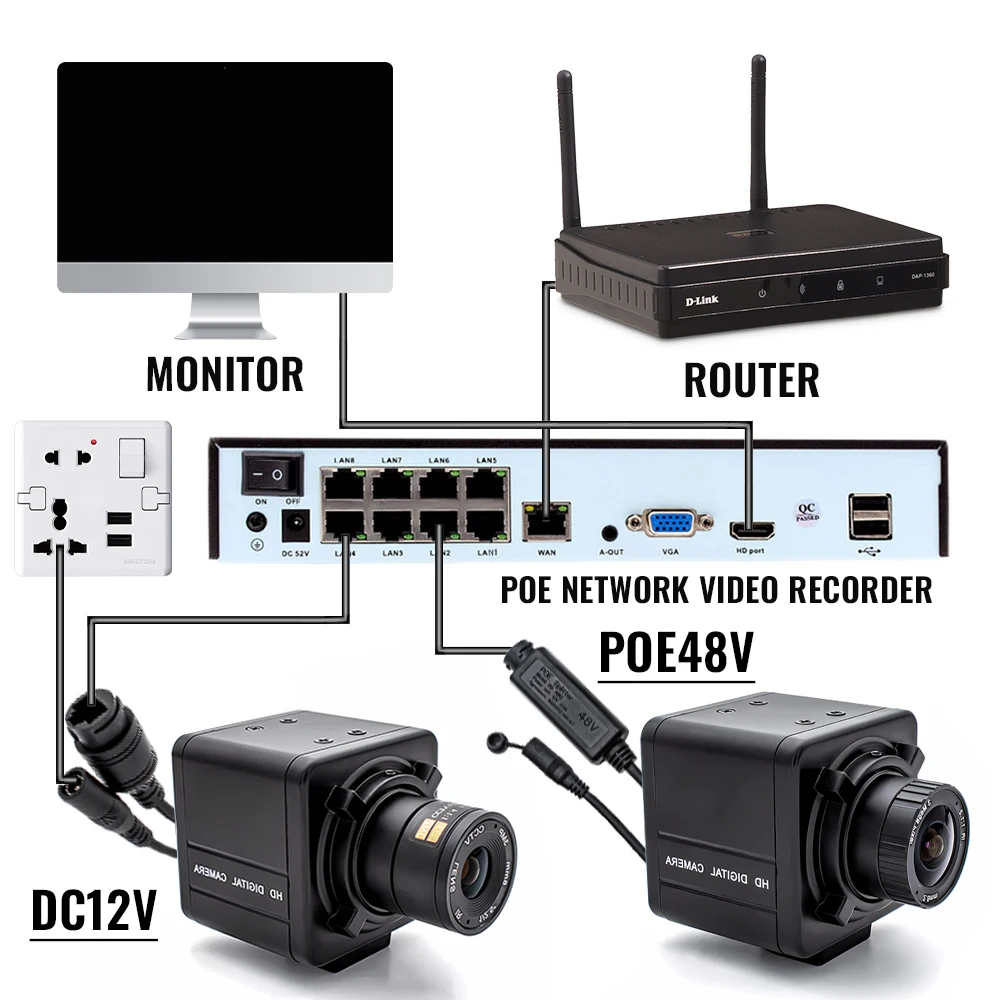

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)
2.Due to manual measurement, please allow an error of 2-3mm.

Experience our webcam, featuring high frame rates, excellent low-light performance, and optional lenses to ensure clear and detailed images. Its ultra-compact design is perfect for various embedded applications, elevating your visual experience to the next level!

1.High quality 3/4/5/8MP HD IP Camera

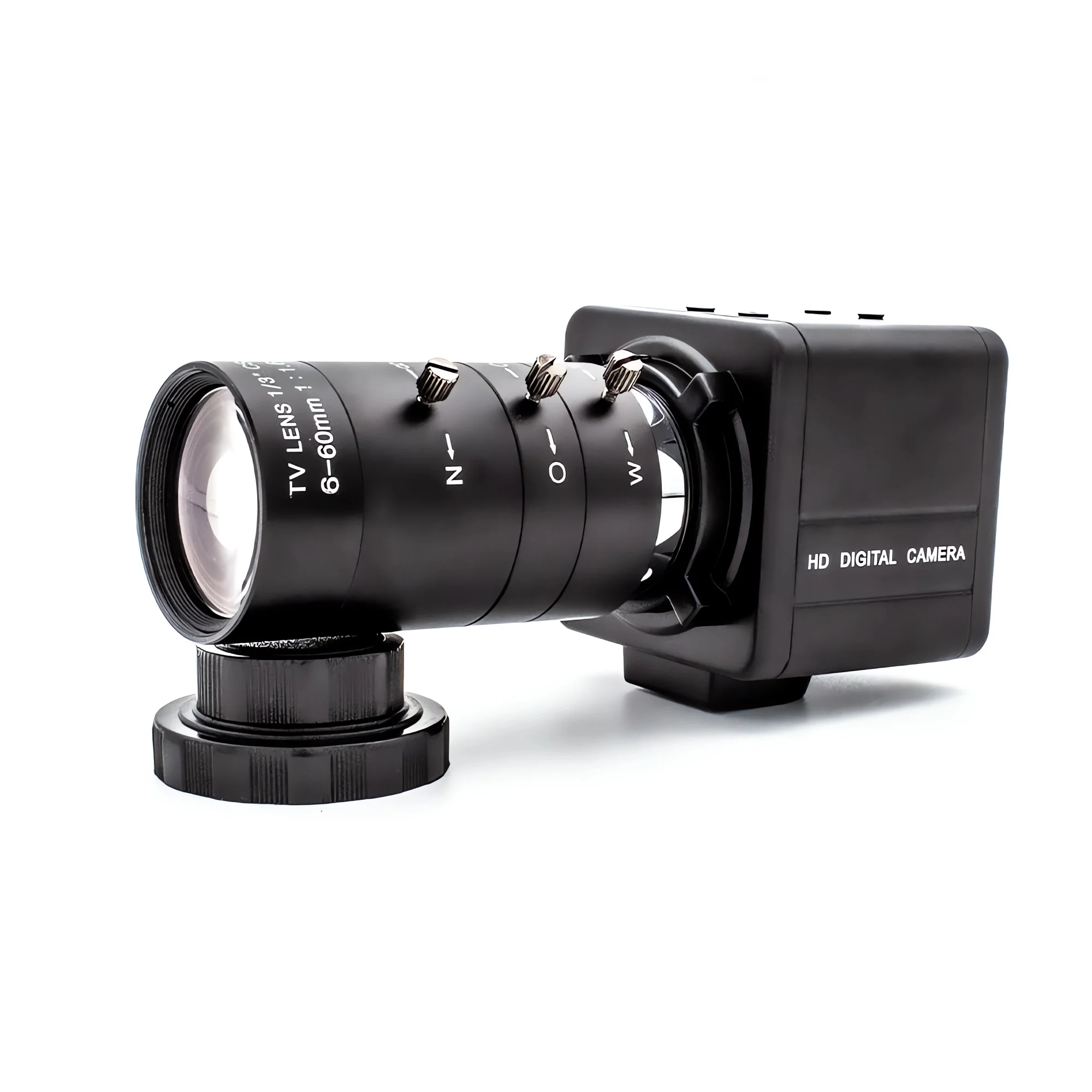

2.2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm Lens can choose

3.High frame rate MJPG– deliver 30 fps in 2560×1440 resolution, 30 fps in 1920X1080 resolution.

4.CMOS Sensor for high quality image and low power consumption.

5.Super small outline and thin profile for embedded applications.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

Why H.265?

H.265 is a new video coding standard that delivers higher-quality network video with limited bandwidth, requiring only half the original bandwidth to play the same quality video.

OS	Parameters	3/4/5/8MP
kernel	System	Windows,Mac OS
Video	Image sensor	8MP Super Low illuminance COMS image sensor
	Video Codec	H.265 main profile and baseline
	IR distance
	Support mobile phone	All phone
	P2P	PHONE,IE,P2P Client global Internet
	Video Resolution	8MP(3840*2160)@15fps/5MP(2880*1624)@25fps/4MP(2560*1440)@25fps/3MP(2560*1440)@25fps
	Video compression	32Kbits/S～12280Mbits/S
Store	SD card	NA
	Client/Browser	Support
Record	Client	support
	Browser	Support
	SD CARD	not Support
Playback	Client	support
	Browser	Support
	SD CARD	not support
SD Card	not support SD card
Audio	Audio input	Mic is builded in camera
	Audio output	SNA
	Audio Codec	G.726/G.711

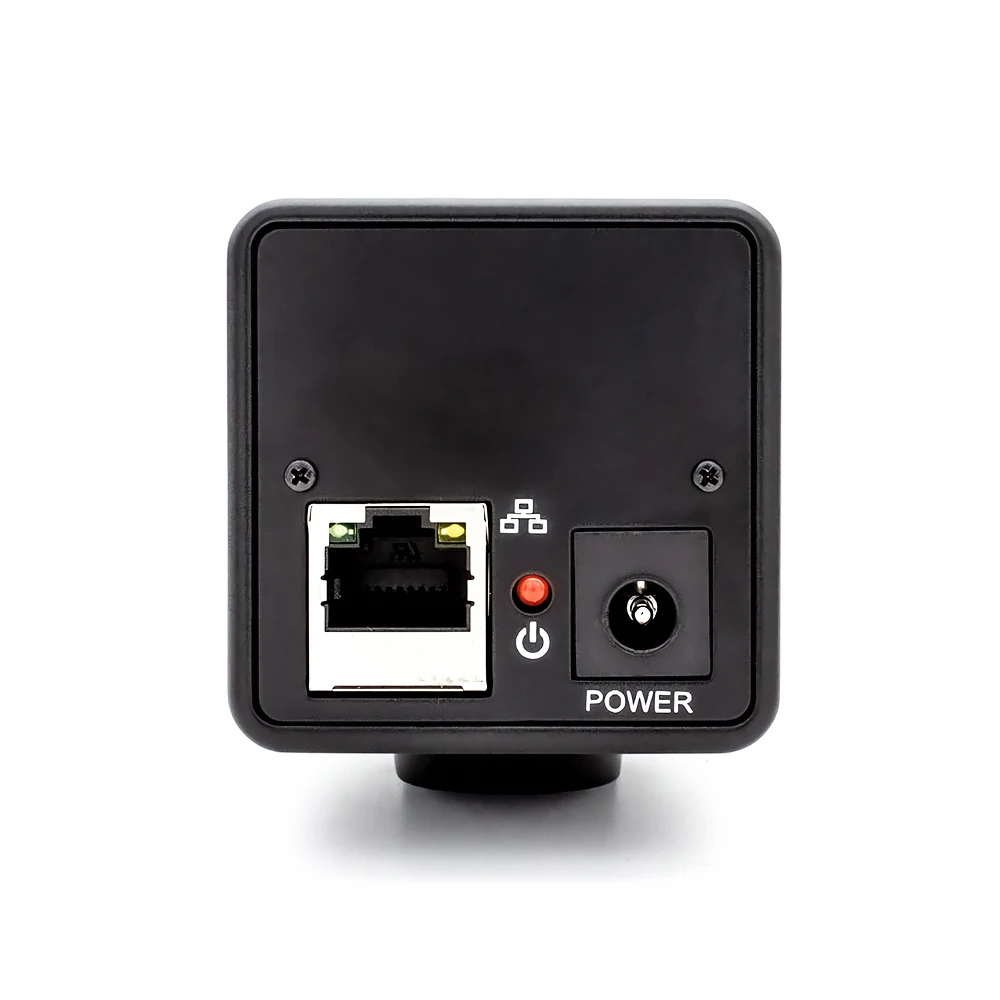

Internet	Internet face	10Base-T/100Base-TX, POE
	Network Protocol	TCP/IP,https,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP
	Access Protocol	ONVIF
Alarm	Motion detection	At most 4 respective regions
	Alarm linkage	Alarm picture send E-mail, alarm images upload FTP server
Snap	Time snap	Regular support capturing images to the FTP server
safe	User management	Provide three levels of rights management (admin, user, guest), support to modify login user name and password
Other	Inter Power,consumption	DC12V 2A/POE (The package does not provide a power adapter)
	Working temperature	-40℃ ～ +55℃
	Working Humidity	10-95%

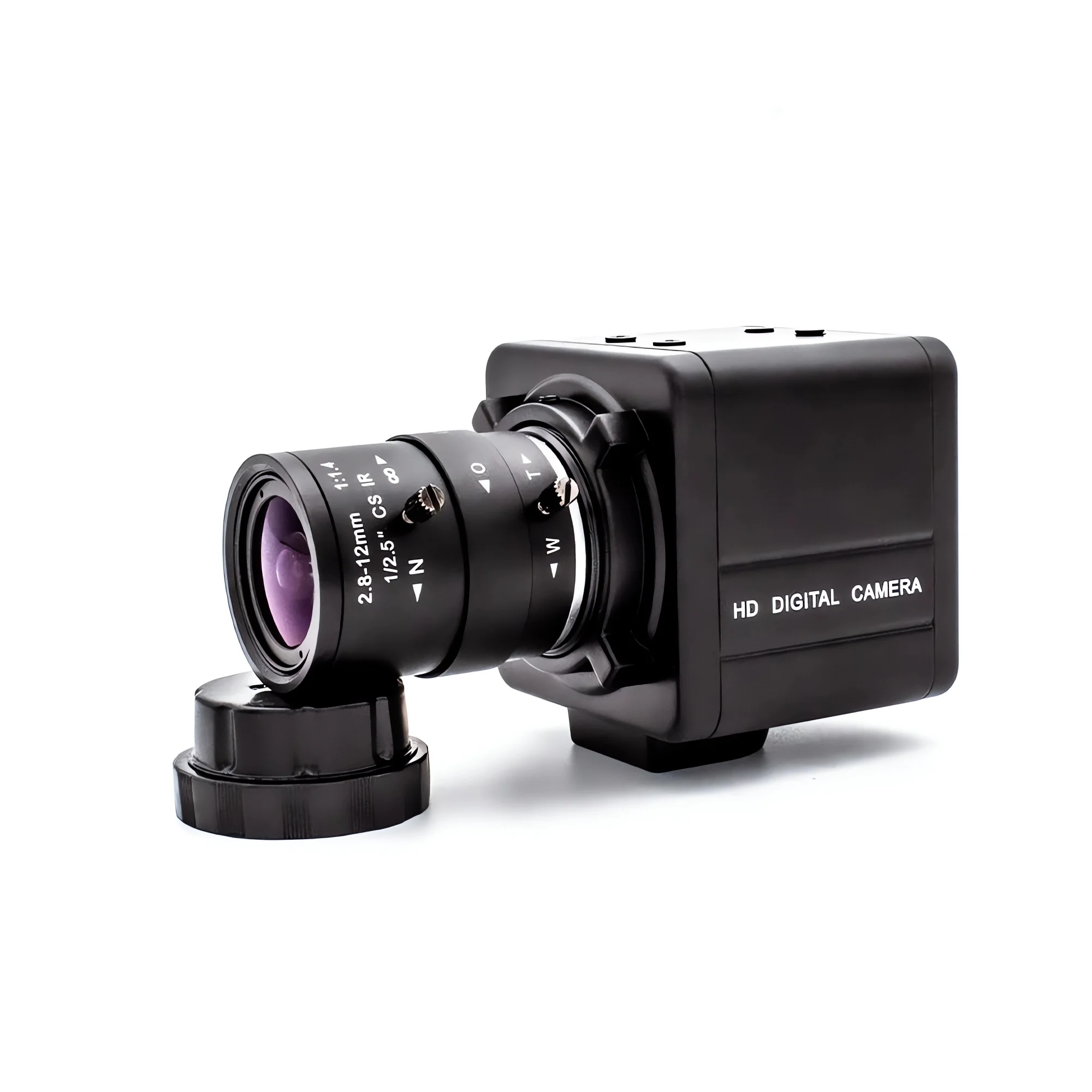

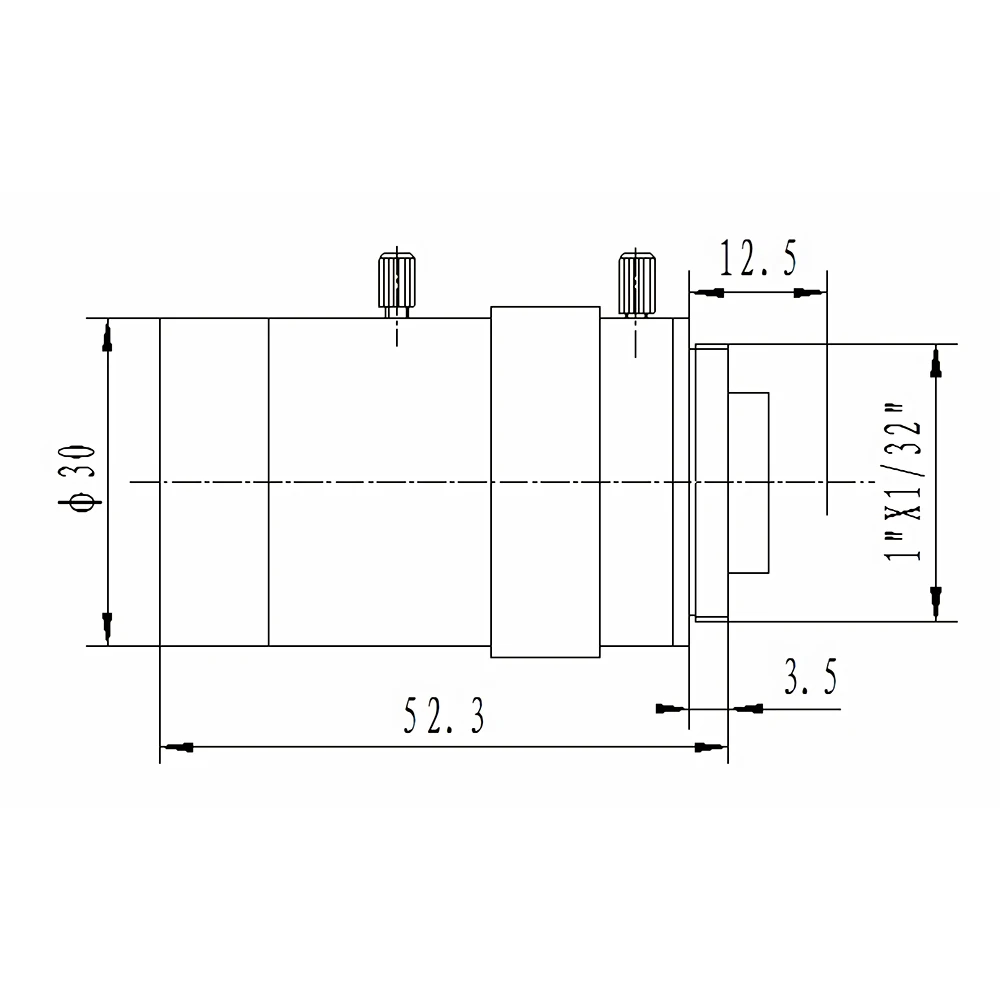

2.8-12mm:

3.6-10mm:

5-50mm:

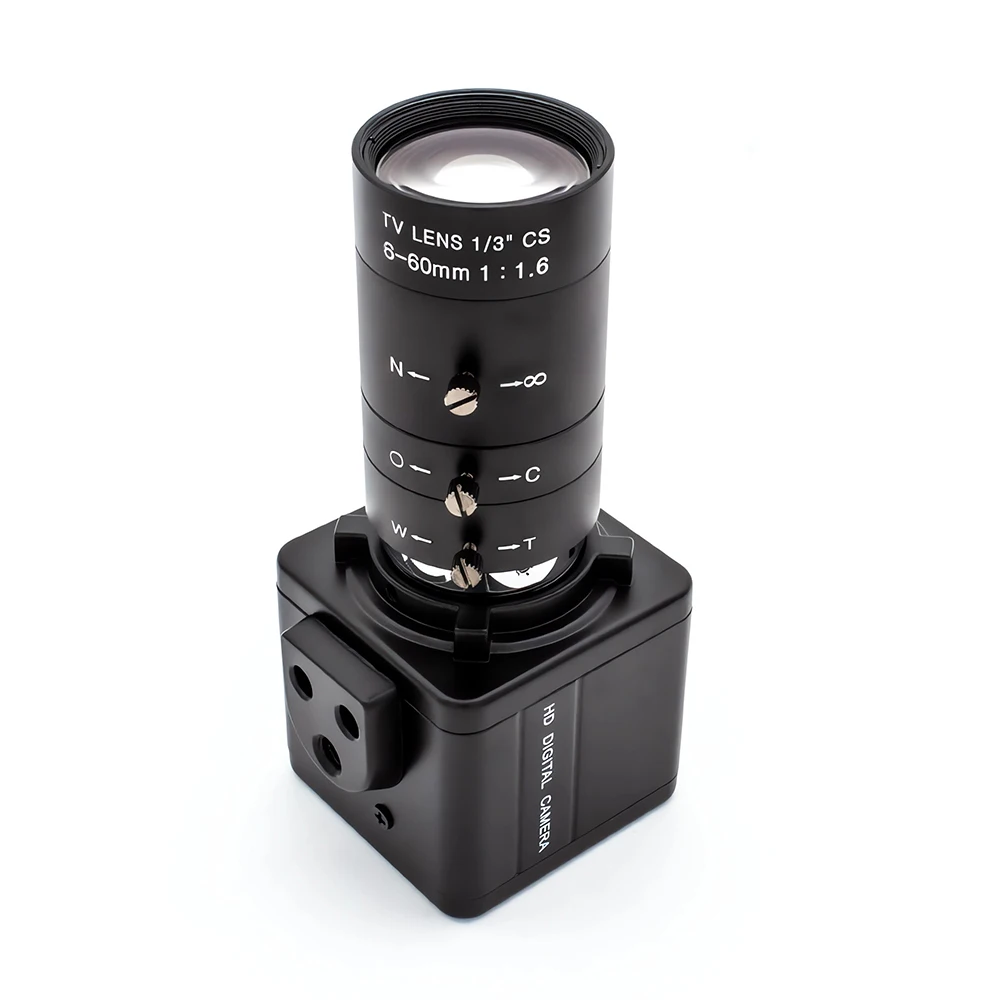

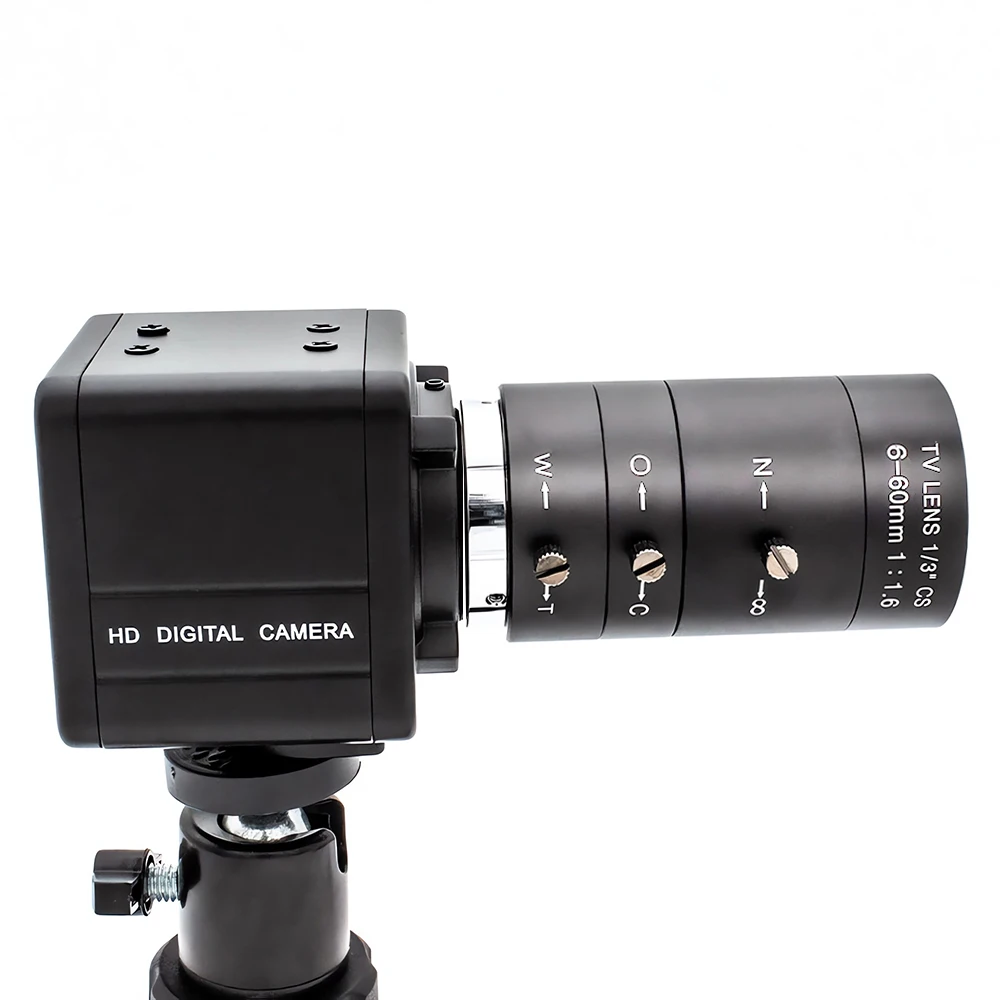

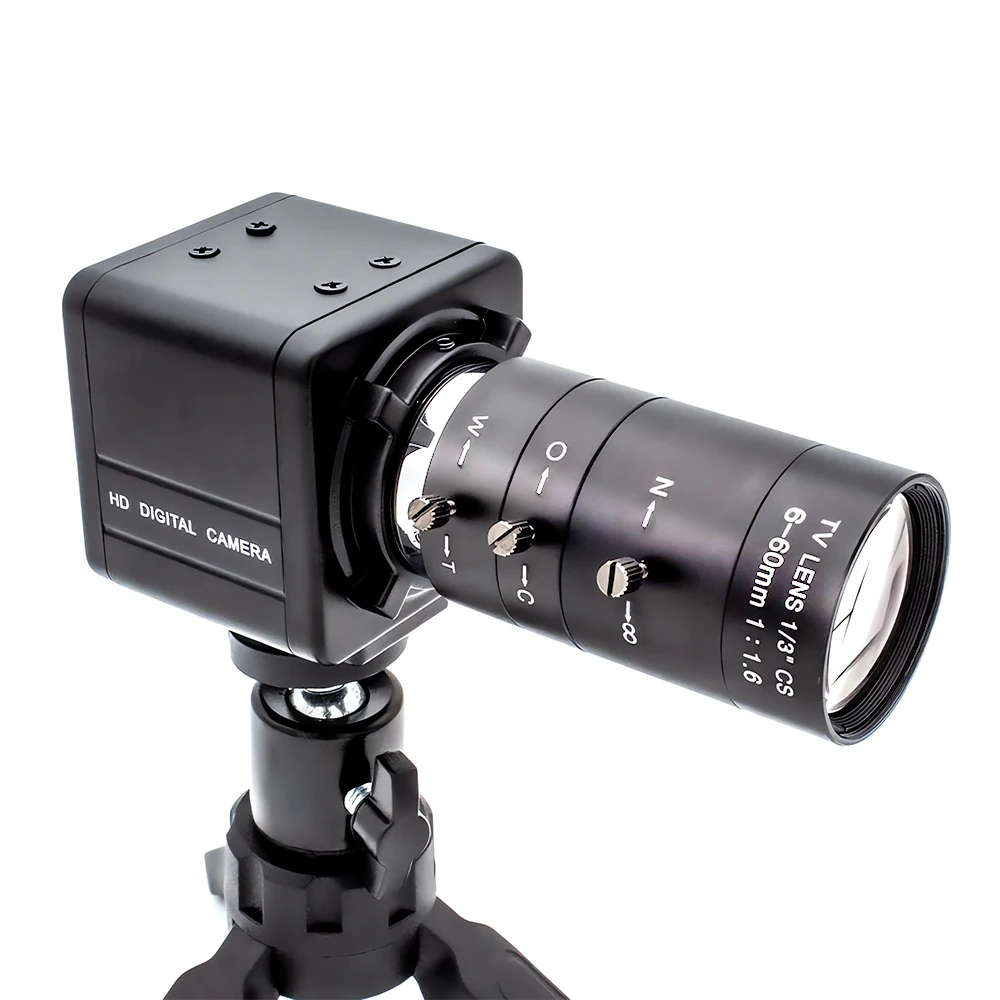

6-60mm:

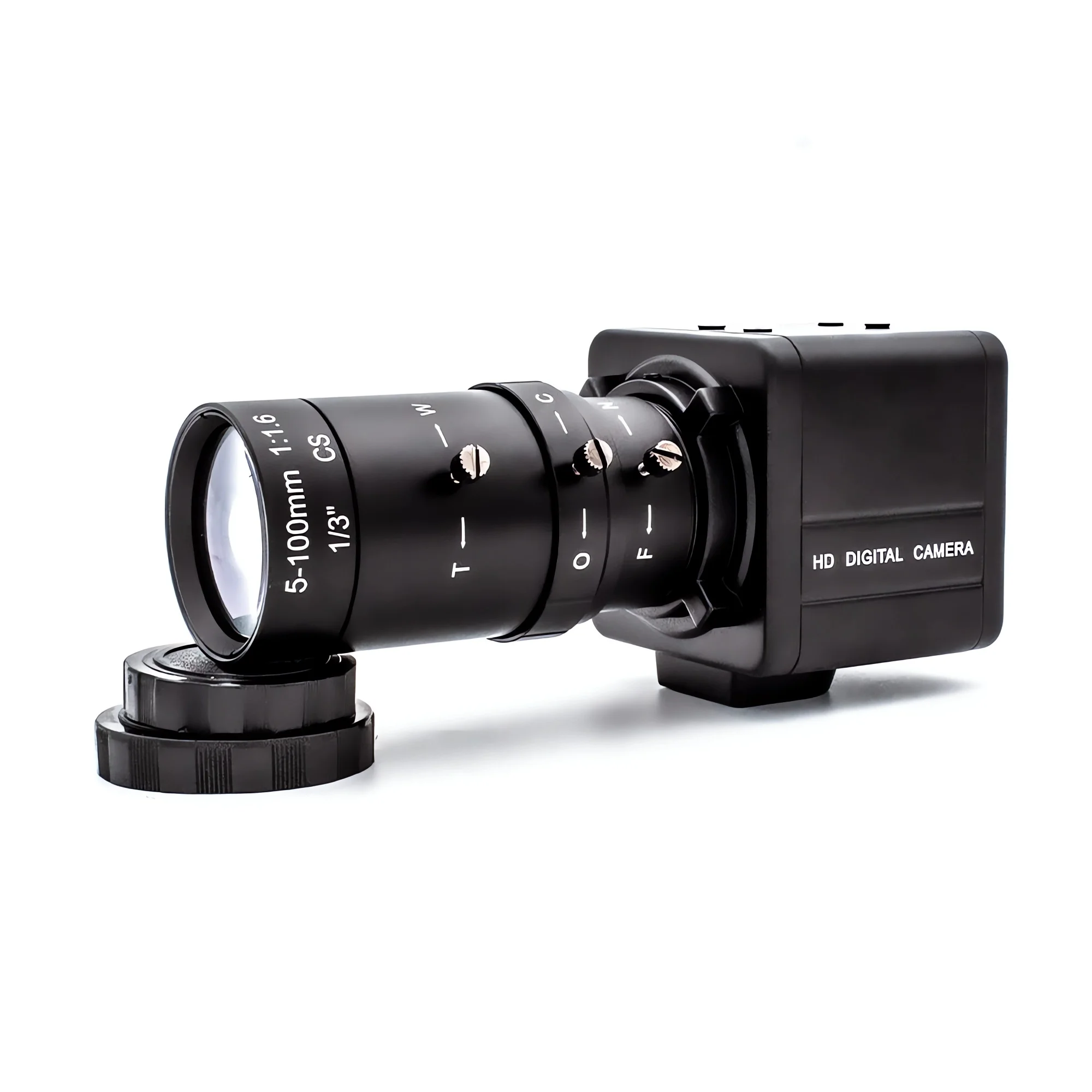

5-100mm:

About RTSP

Address stream:

Enter the network URL in Please enter network URL:

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57  This is the IP of the connected device

:554 This is the port number of the RTSP service, which can be changed in the device's network service

user=admin This is the login user name for the device

password= Password blank

channel=1 First channel

stream=0.sdp？Main code stream

stream=1.sdp？Auxiliary code stream

rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?

10.6.3.57 is the device IP address

:554 is RTSP port，can reset in device network service

user=admin is device user’s name

password= no pass word

channel=1 refer to Channel No.1

stream=0.sdp？ mainstream

stream=1.sdp？ substream

About computer operation and use

Make sure the camera is connected to the power supply and network

(the signal light flashes to prove that everything is normal)

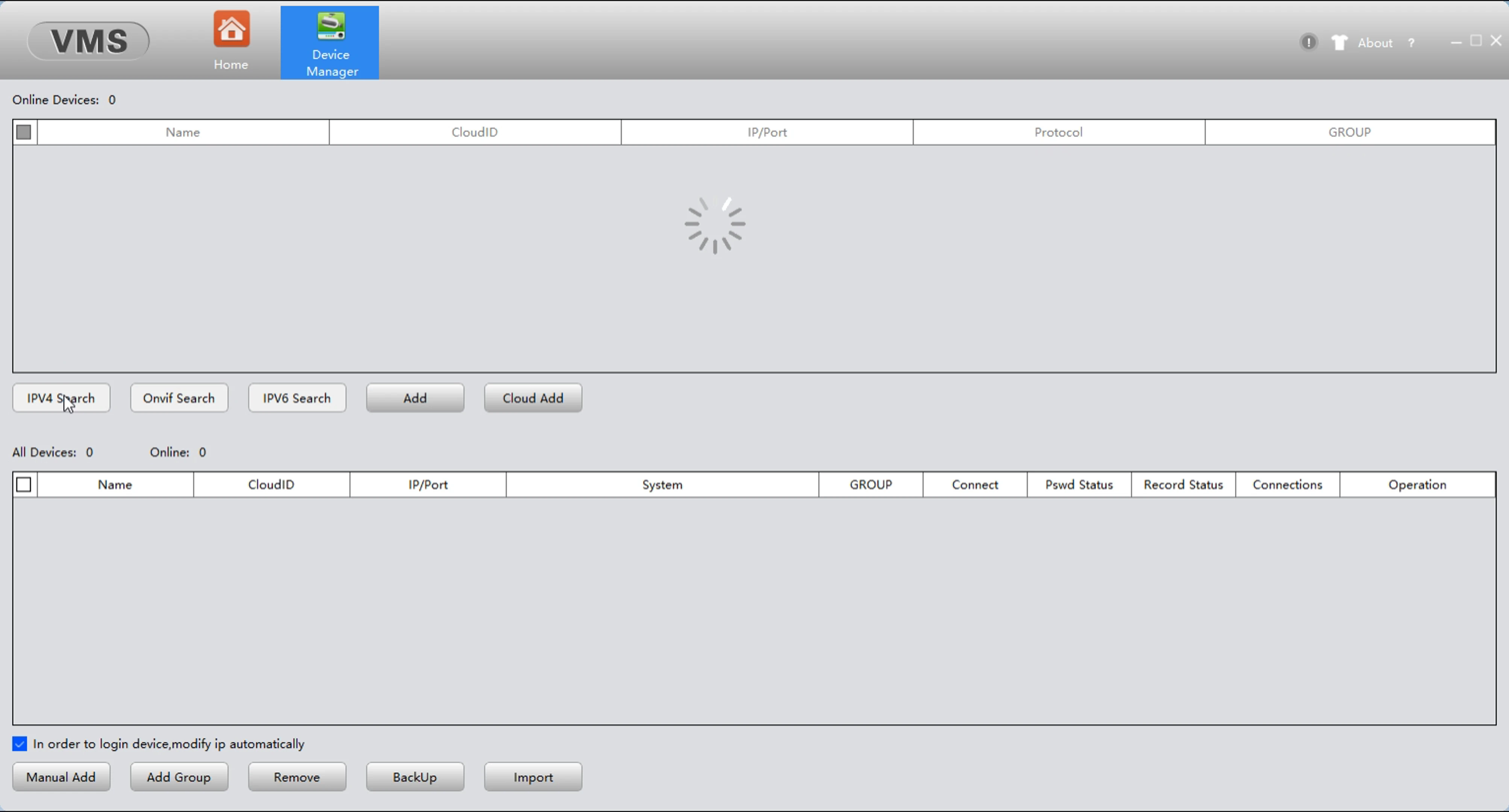

Step 1 : Install VMS

VMS Computer Client: https://download.xm030.cn/d/MDAwMDE2OTA=

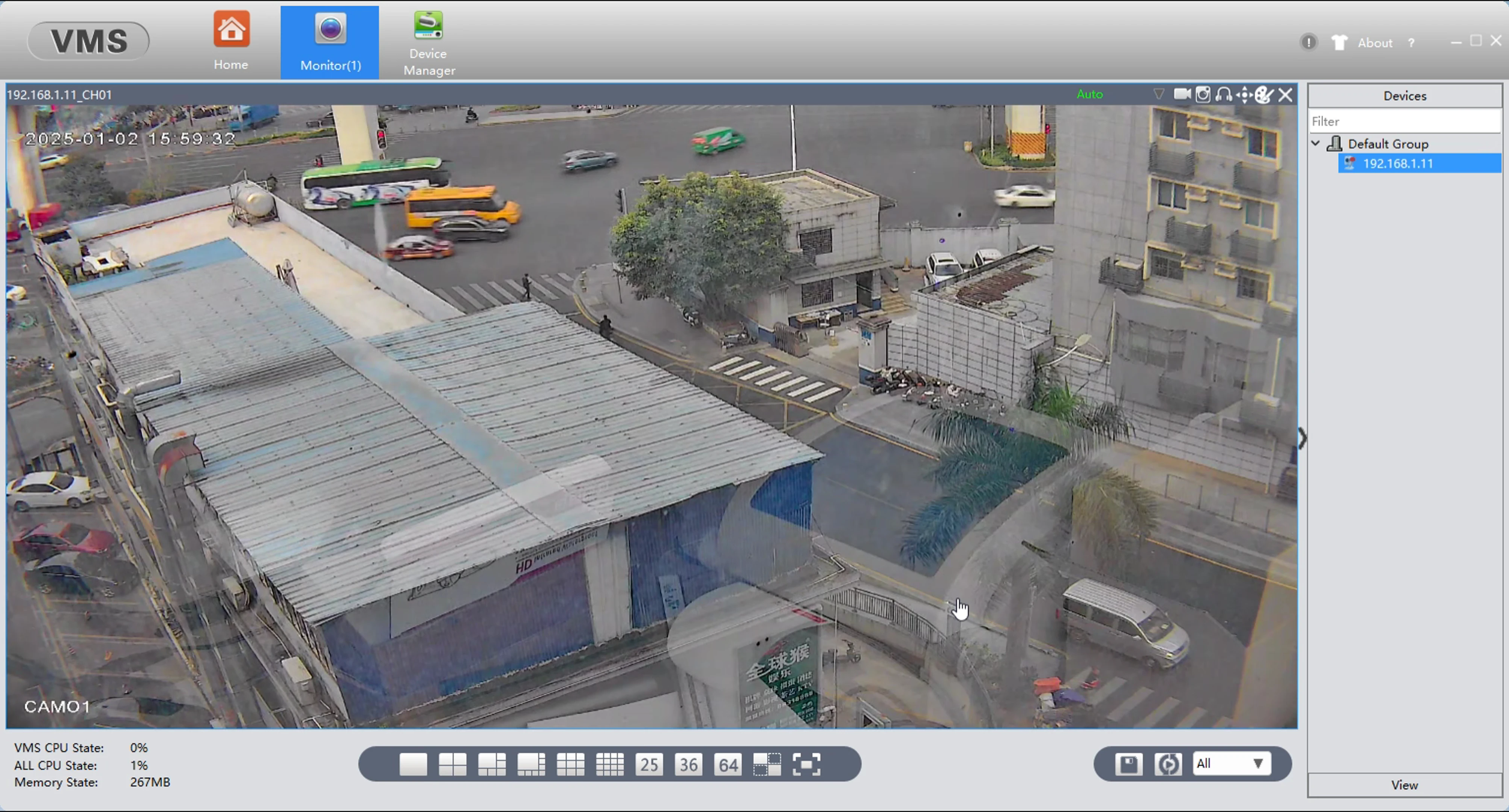

Step 2: Login VMS

UserName: admin,Password:admin

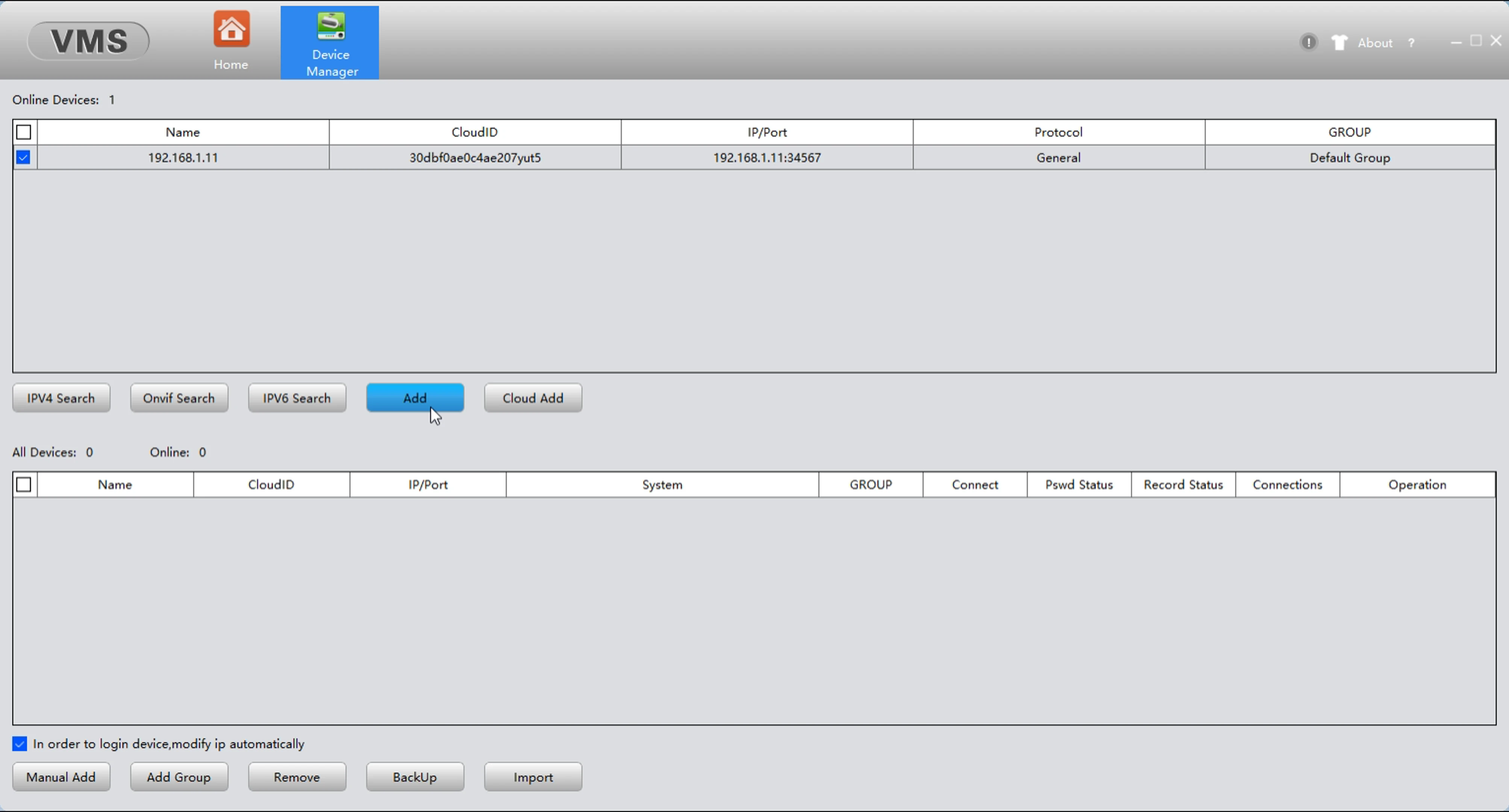

Step 3: Find your camera and add

APP download: Search XMEye in Apple Store
