SPECIFICATIONS

Brand Name: HONGPOE

Certification: CE,FCC,RoHS

Hign-concerned Chemical: None

Origin: Mainland China

Output Current: 0-100A

Output Frequency: 50/60Hz

Output Power: >500W

Output Type: SINGLE

is_customized: Yes

Power parameters:

1, input voltage: 220VAC / 380VAC Single voltage input

2, the output voltage: 0-110V 150V 200V 250V 300V 350V 400VDC

3, Power: 1500~8000W

4, the operating frequency: 47-63Hz

5, efficiency: 88~91%

6, dimensions:

1500W~3500W:280*180*65mm

4000W~5000W:320*220*65mm

6000W~7000W: 280*180*130mm

8000W:320*220*130mm

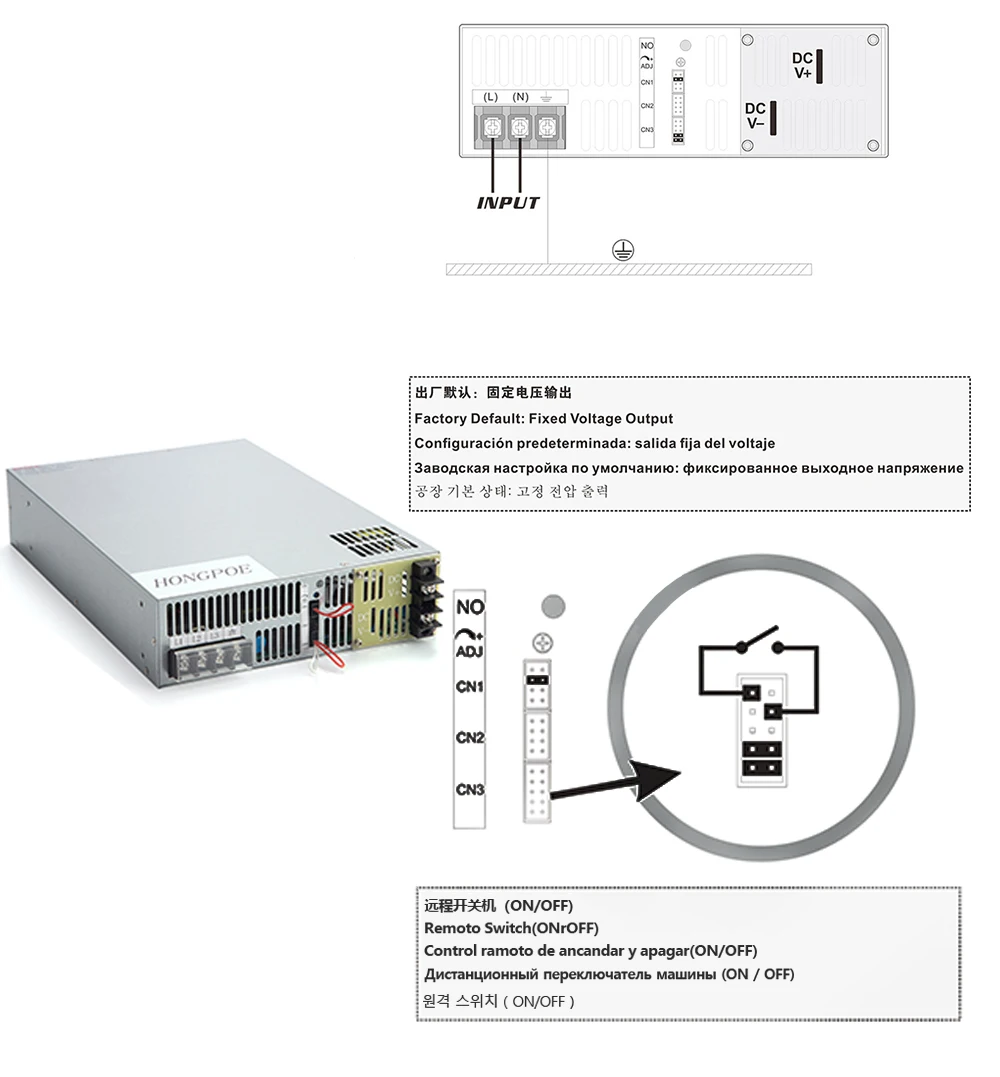

7. The interface description of the output control function is shown in the figure below

Description:

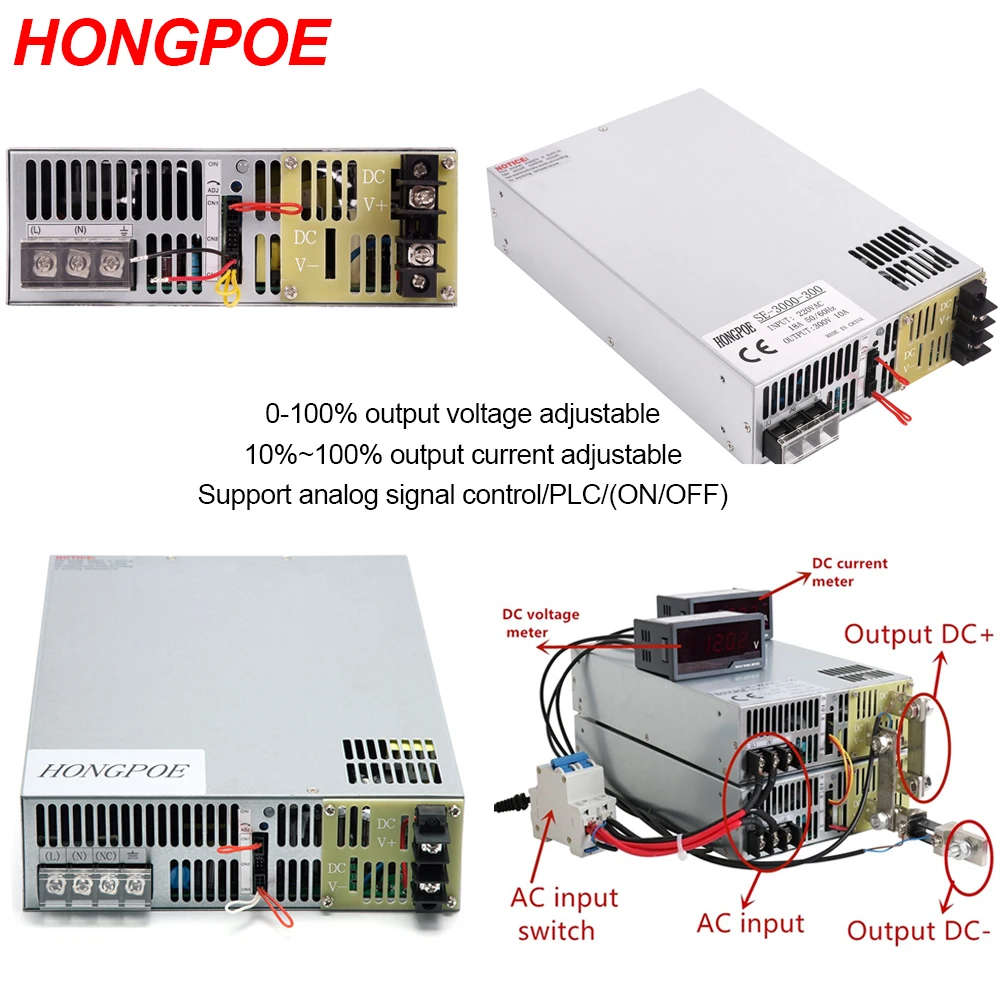

The professional and high-power 8000W 68V switching power supply, can be widely used in industrial automation, personal CNC stepper / servo systems DIY, CCTV equipment and LED lighting equipment. Powerful features (for example, PWM control) and professional design (eg, double overlap in fan cooling) to ensure high reliability, high efficiency and power. Low cost makes widespread use, it is easier to accept.

Features

High efficiency, high reliability and low cost.

8000W power to accommodate more equipment.

Support 0-68V adjustable output voltage

PWM control and regulation to ensure stable and accurate output voltage.

Built-in dual fan forced air cooling.

Built-in EMI filter.

100% full load burn-in test.

Overcurrent, overvoltage, short circuit and thermal protection.

Low output ripple and cry.

Control support:

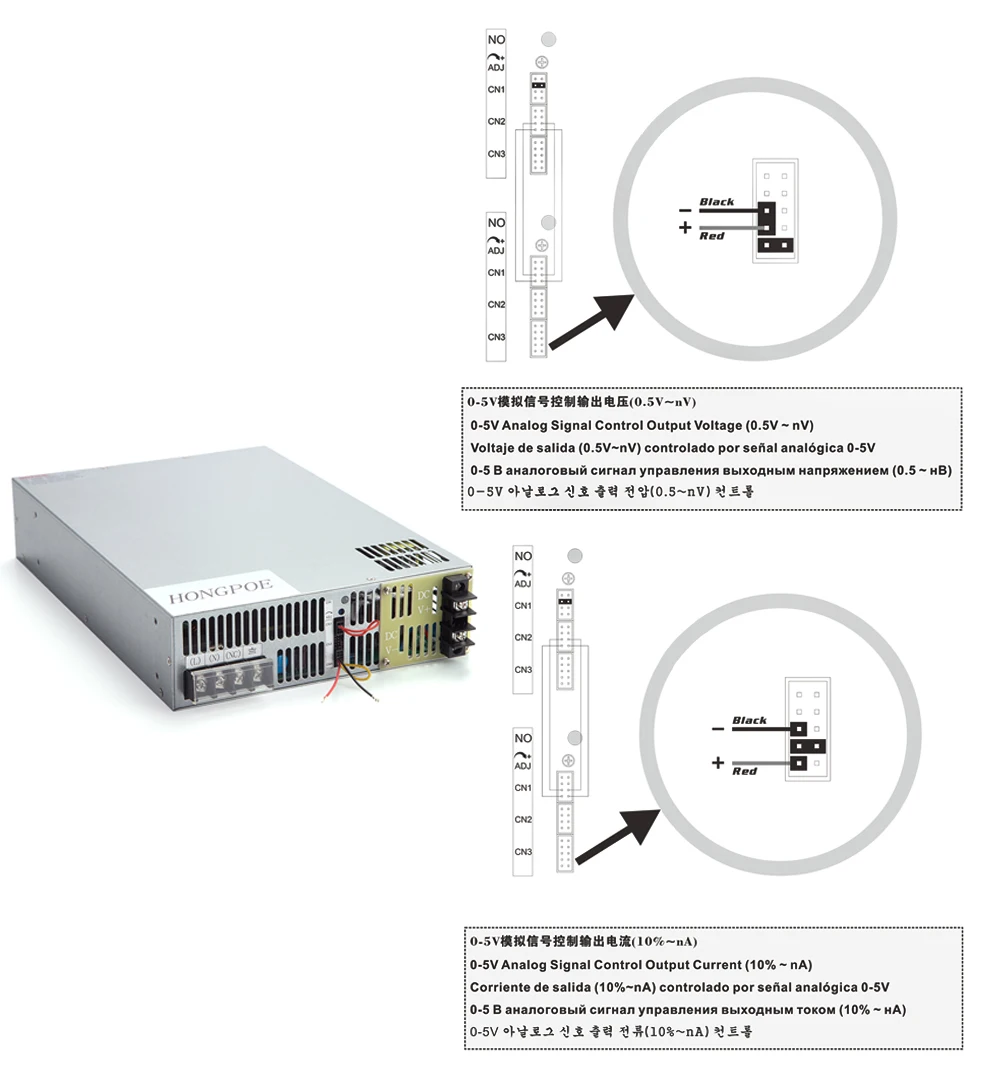

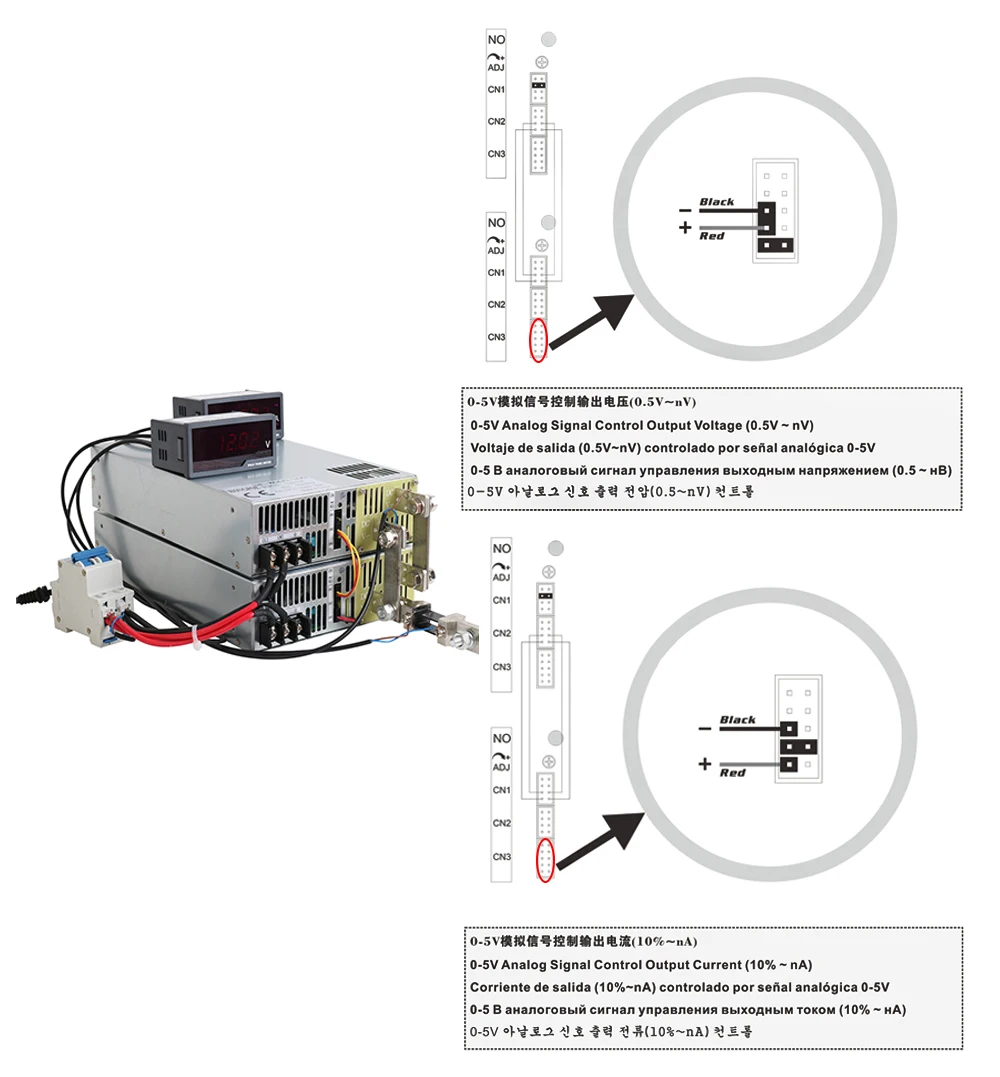

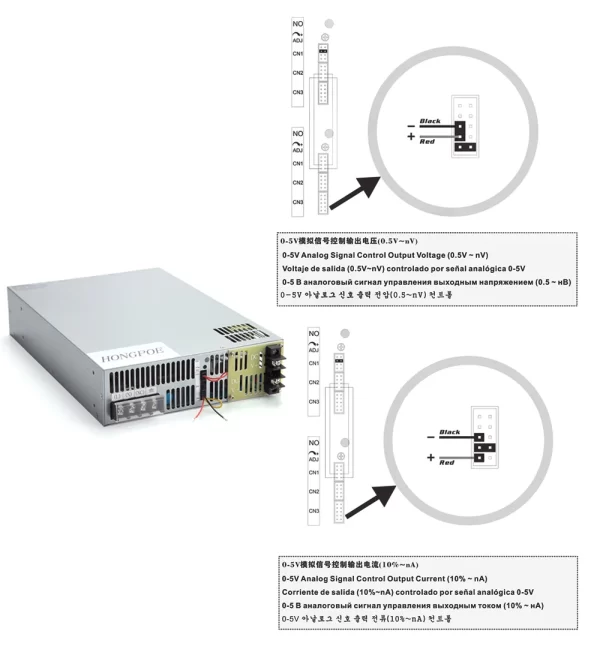

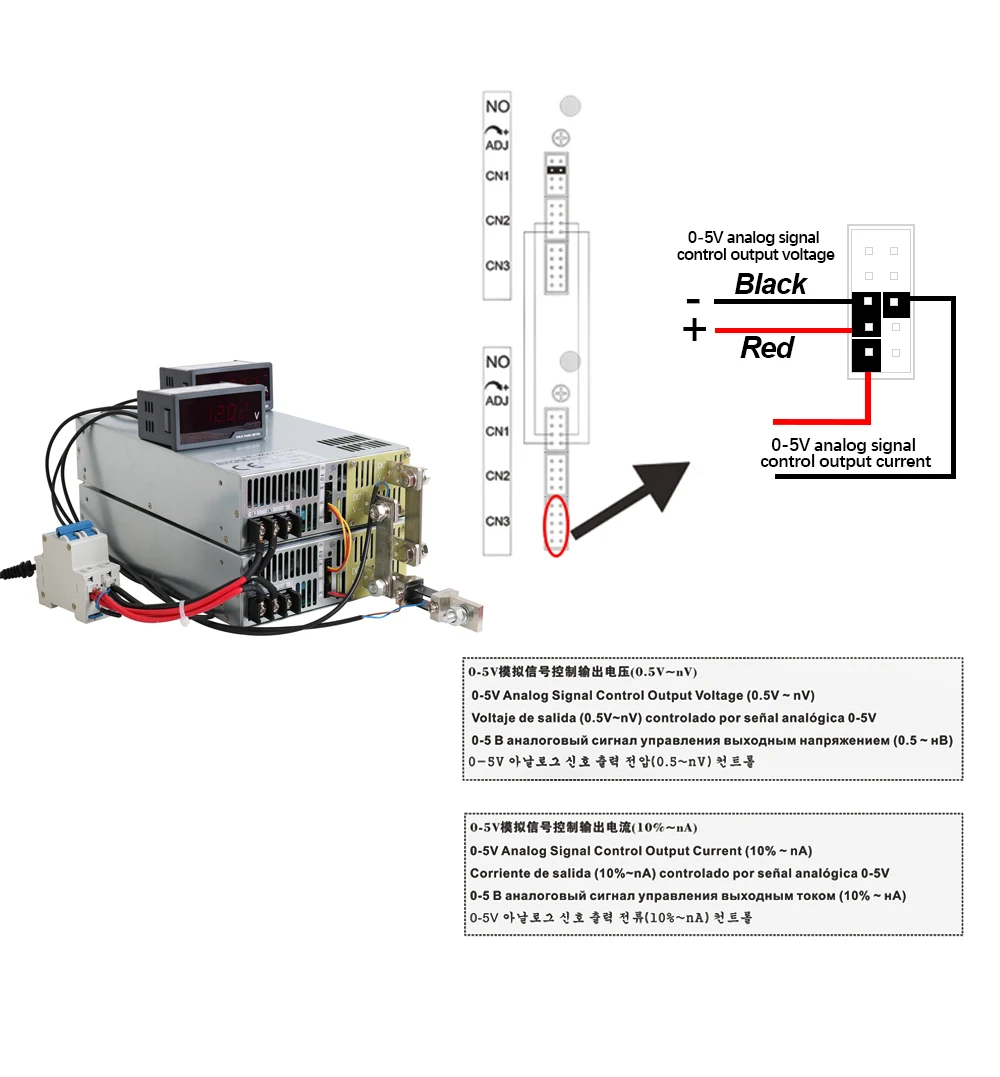

1,0-5V analog signal control the output voltage

2,0-5V analog signal control the output current

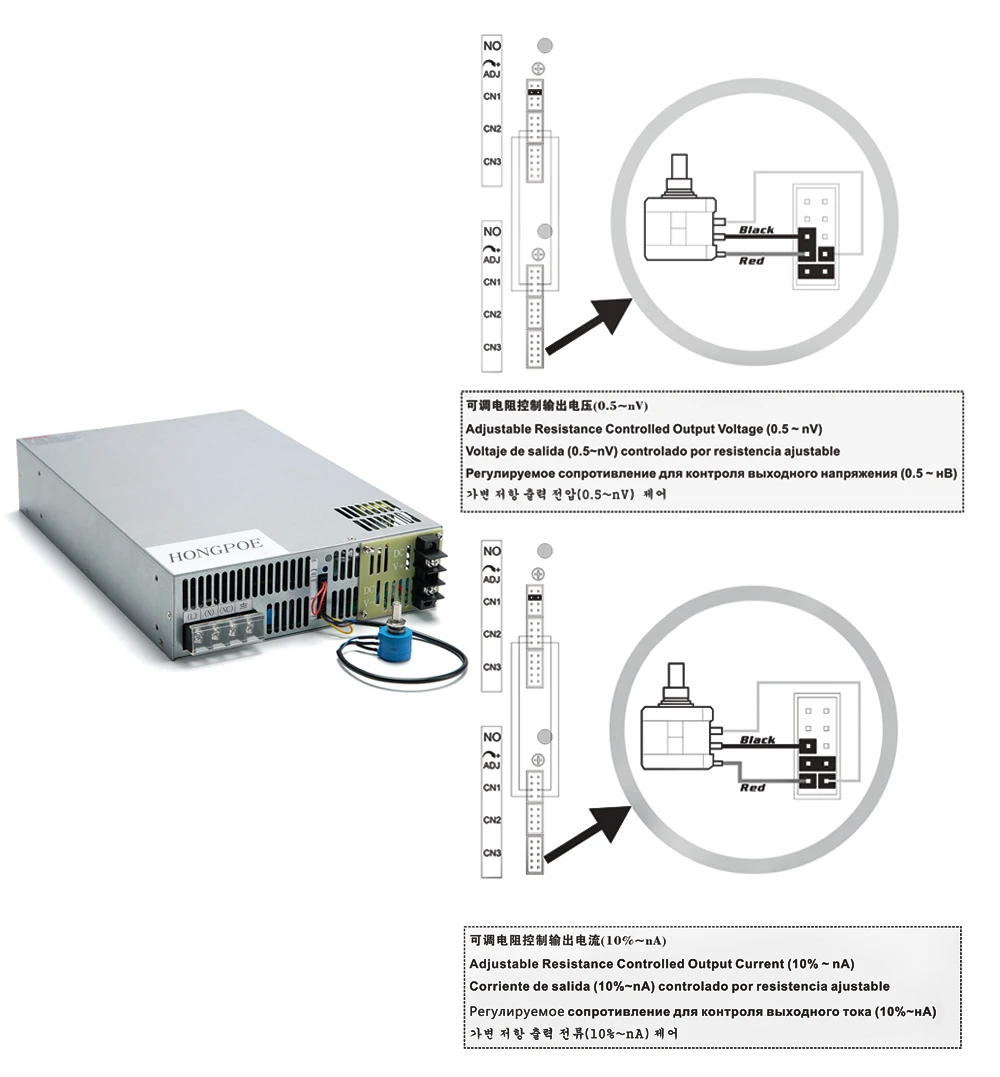

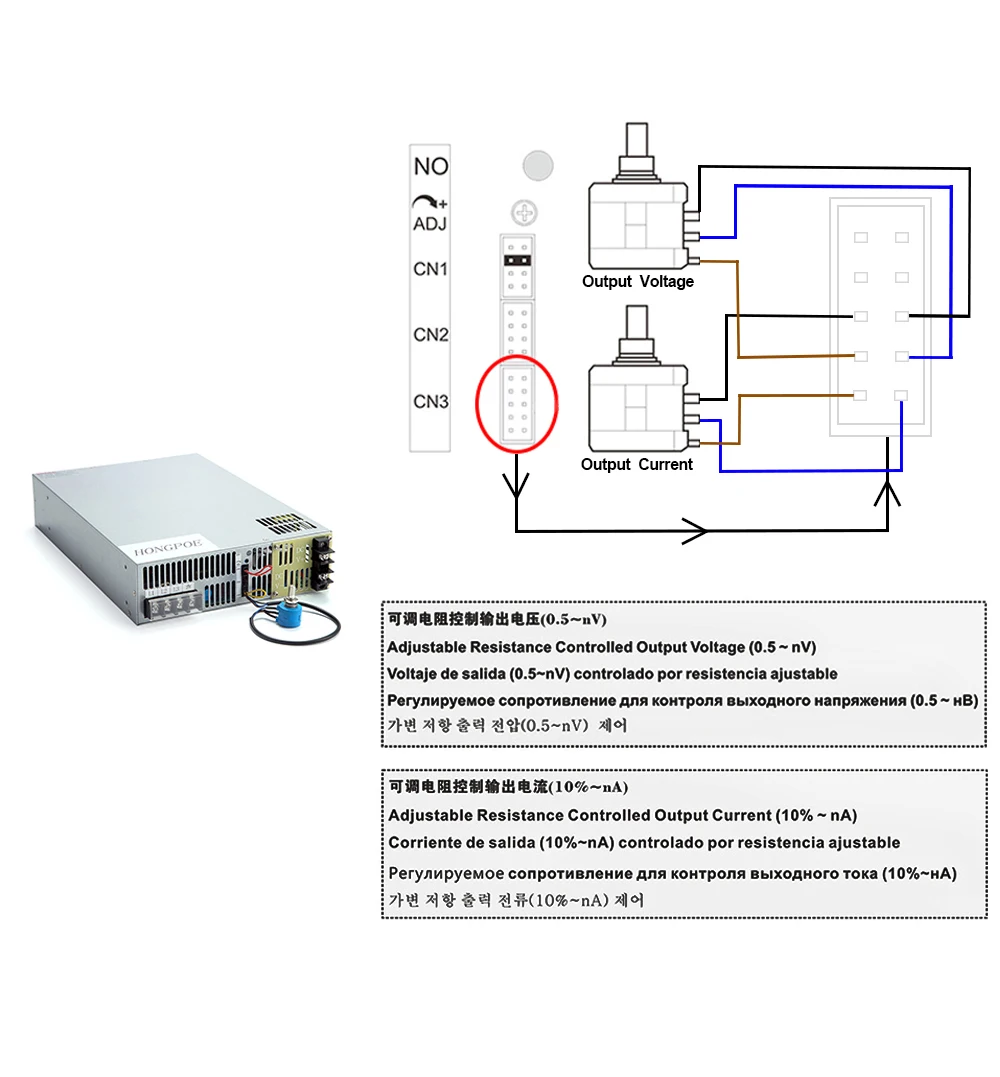

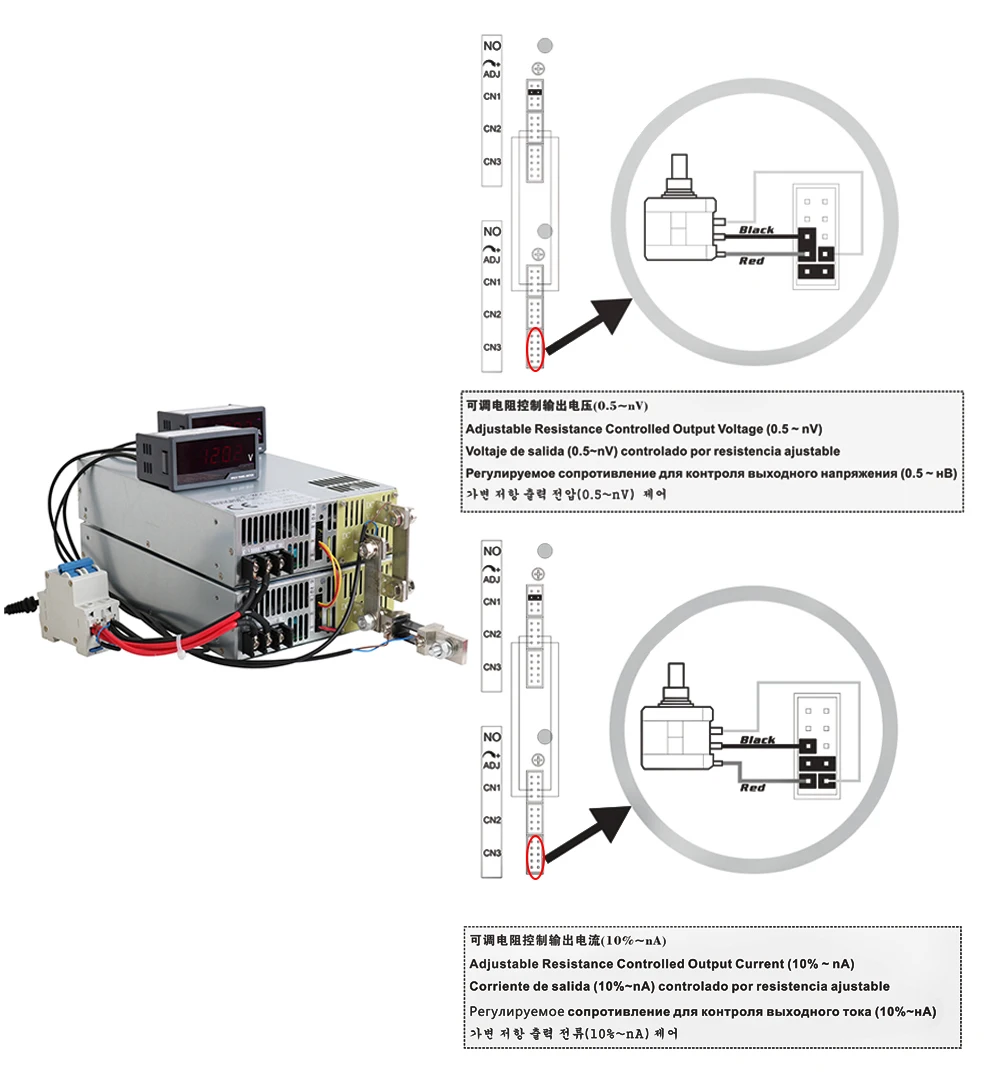

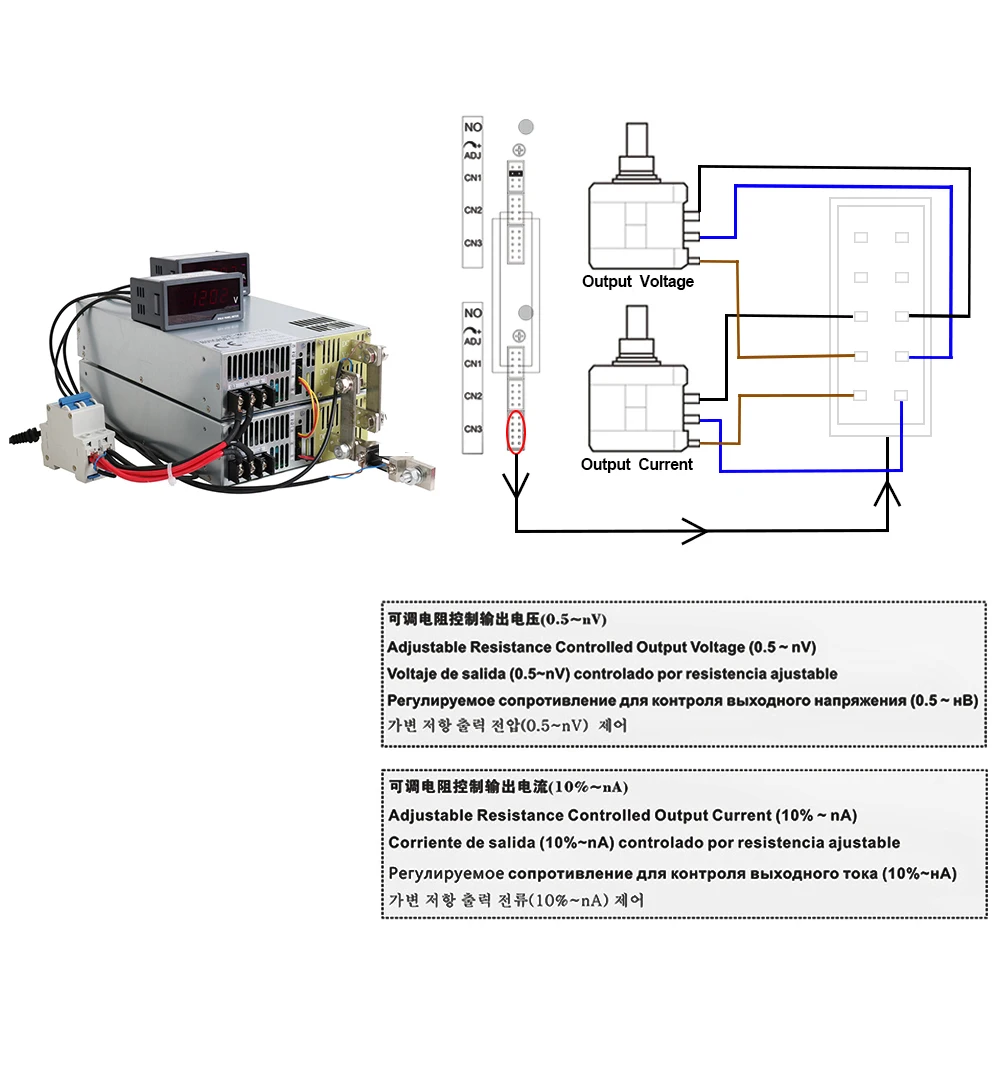

3, the use of adjustable resistance control output voltage

4, the use of adjustable resistance control output current

5, constant current constant voltage power supply

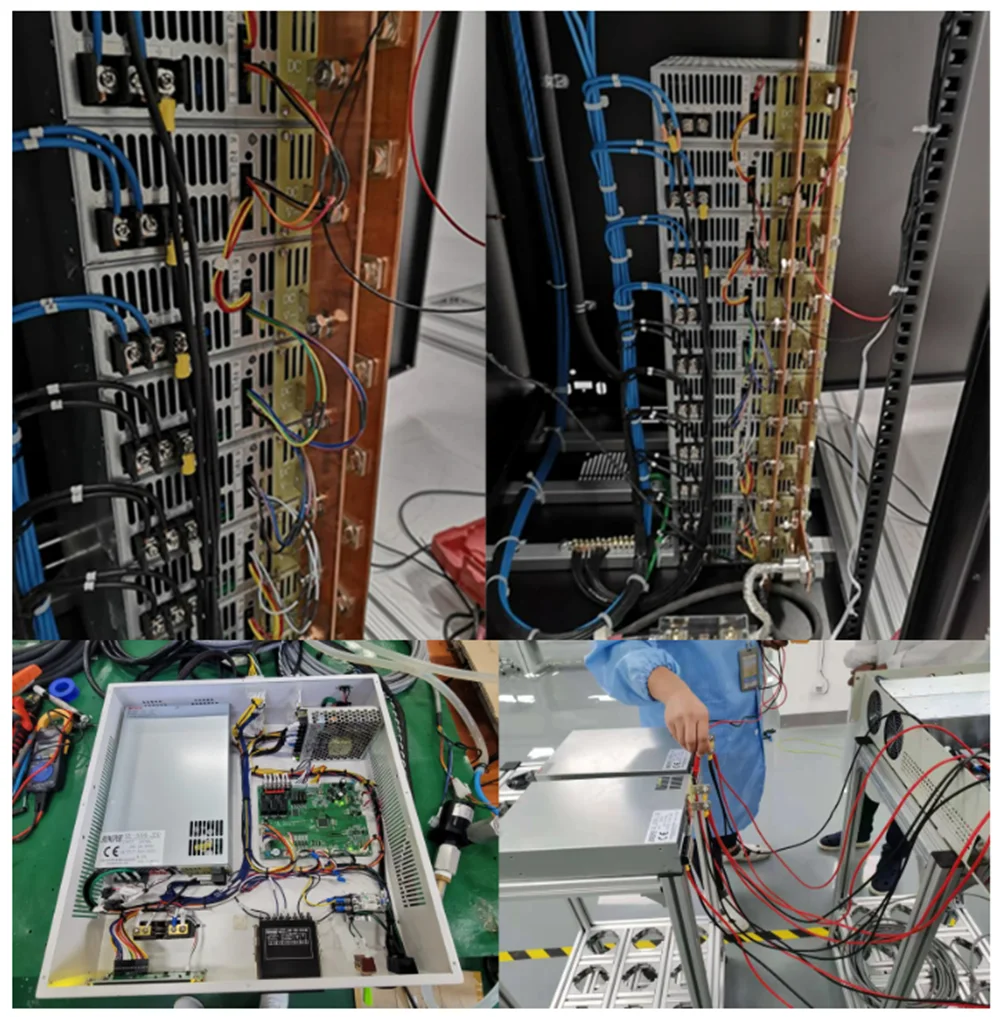

6, can be parallel (N +1)

Please refer to the power instruction manual.

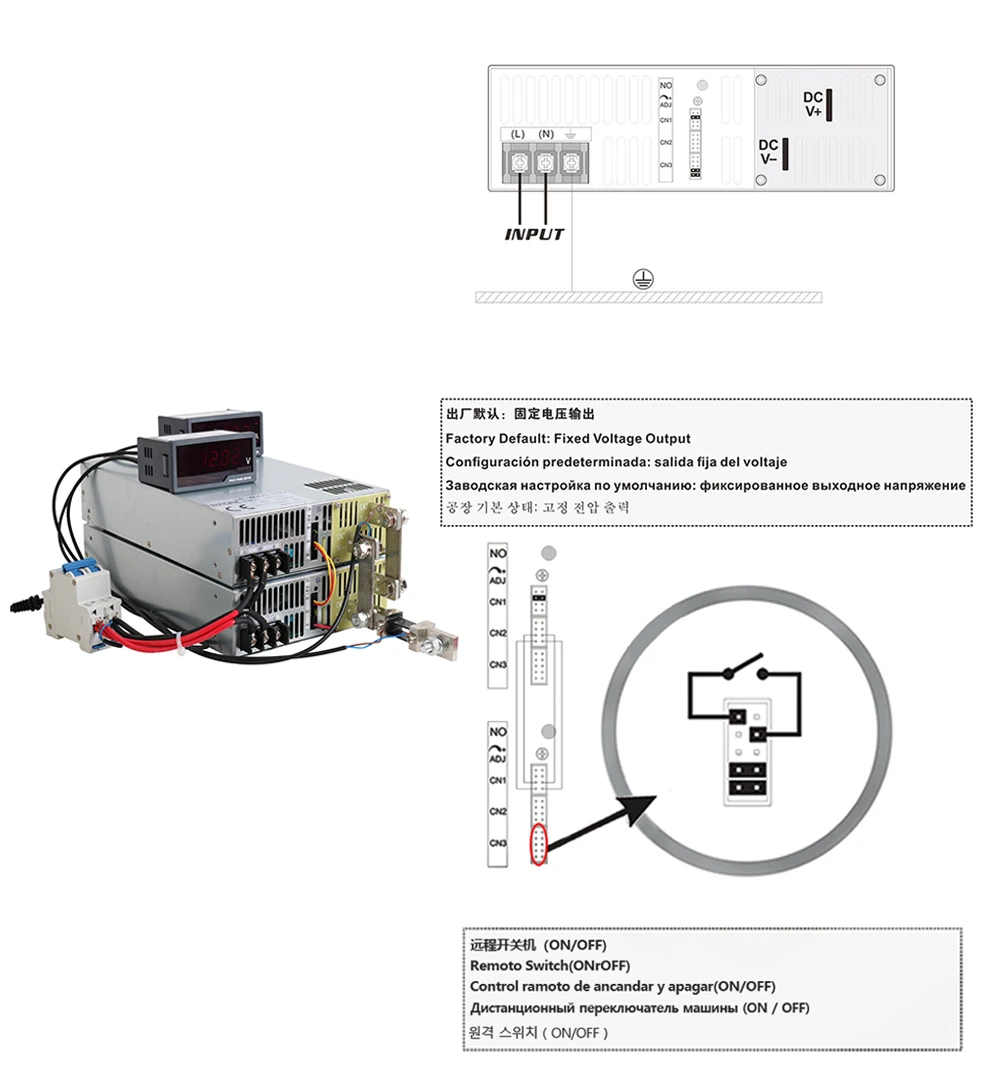

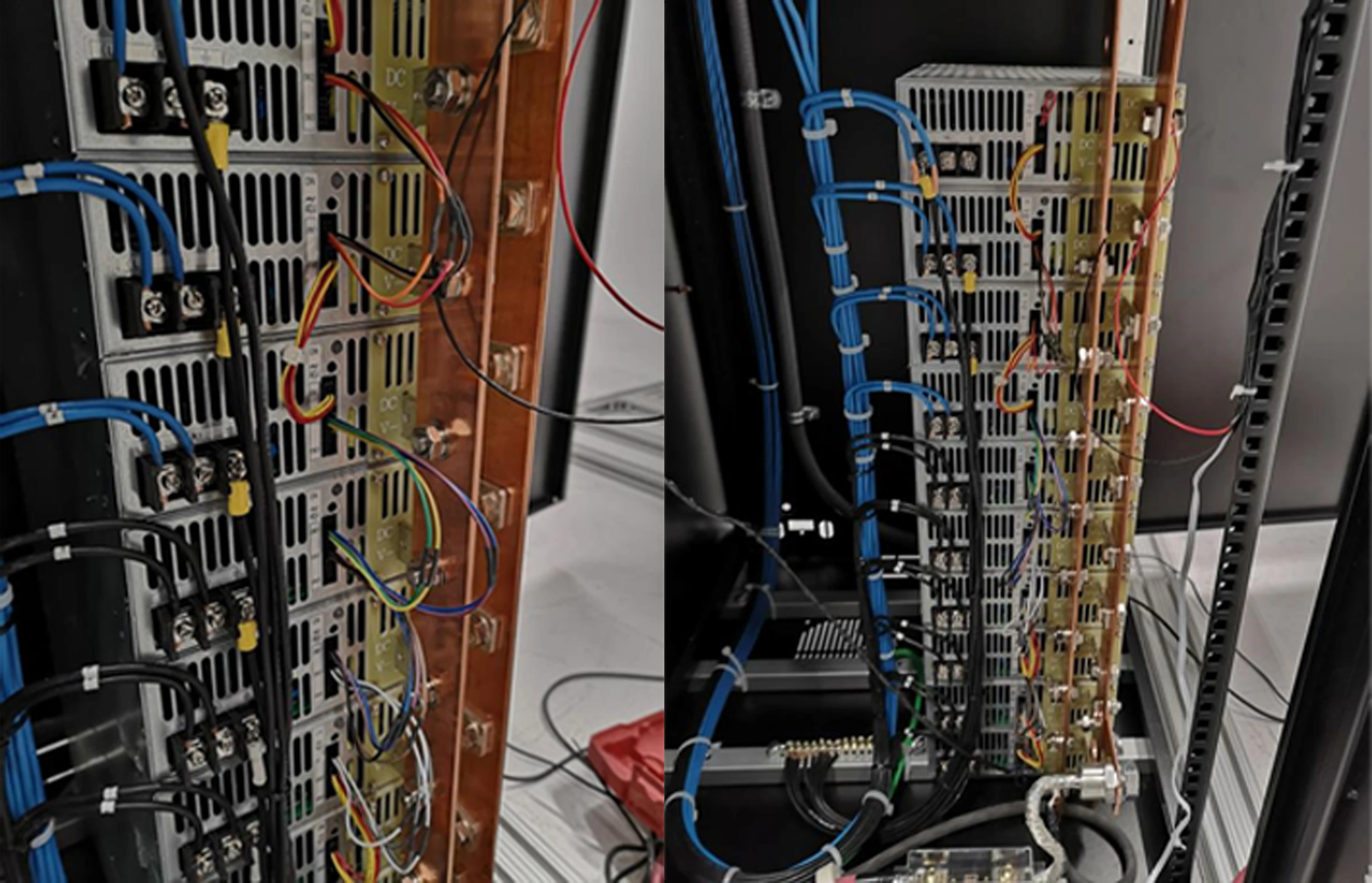

N+1 Parallel Wiring Control Instructions
